Manufacturer |
Texas Instruments
|
|
Manufacturer Product Number |
TLVM13610RDFR
|
|
Description |
36-V INPUT, 1-V TO 10-V OUTPUT,
|
|
Type |
Description |
Select All |
|---|---|---|
|
Category |
Power Supplies – Board Mount
DC DC Converters
|
|
|
Mfr |
Texas Instruments |
|
|
Series |
HotRod™ |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Non-Isolated PoL Module
|
|
|
Number of Outputs |
1
|
|
|
Voltage – Input (Min) |
3V
|
|
|
Voltage – Input (Max) |
36V
|
|
|
Voltage – Output 1 |
1 ~ 10V |
|
|
Voltage – Output 2 |
–
|
|
|
Voltage – Output 3 |
–
|
|
|
Voltage – Output 4 |
–
|
|
|
Current – Output (Max) |
8A
|
|
|
Applications |
ITE (Commercial)
|
|
|
Features |
Adjustable Output, Remote On/Off
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Efficiency |
94.3%
|
|
|
Mounting Type |
Surface Mount
|
|
|

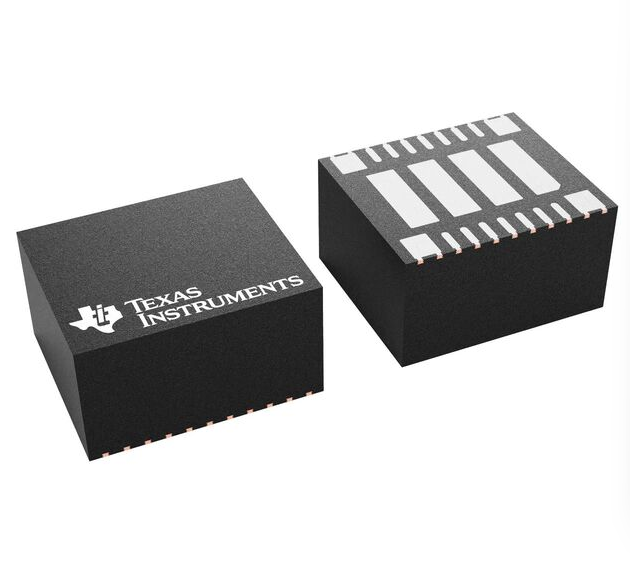

Package / Case |
22-PowerBQFN Module
|
|
|
Size / Dimension |
0.30″ L x 0.26″ W x 0.16″ H (7.5mm x 6.5mm x 4.0mm)
|
|
|
Supplier Device Package |
22-B3QFN (6.5×7.5)
|
|
|
Control Features |
Enable, Active High
|
|
|
Approval Agency |
–
|
|
|
Standard Number |
–
|
Industrial Automation: Ideal for PLC, factory automation, and motor drive control systems where space and heat management are critical.
Test & Measurement: Provides ultra-stable power rails for sensitive laboratory instruments and automated test equipment (ATE).
Medical Equipment: Trusted for diagnostic imaging and patient monitoring systems due to its high reliability and low EMI profile.
Telecom & Networking: Powers core infrastructure components, offering efficient voltage regulation for high-speed data processing.
Traceable Authenticity: We specialize in high-reliability TI components, ensuring every TLVM13610RDFR is genuine and meets original manufacturer specifications.
Shenzhen Hub Efficiency: Leveraging our presence in the Huaqiangbei area, we offer real-time inventory insights and rapid dispatch to international markets.
Logistics Excellence: From Mexico to Russia and Iran, we provide specialized shipping solutions to ensure your power modules arrive safely and on schedule.
Comprehensive BOM Support: Our team can help you source the surrounding passive components for the TLVM13610, providing a one-stop solution for your power supply designs.
