A leading professional service provider focusing on the global semiconductor distribution industry.
|
Manufacturer |

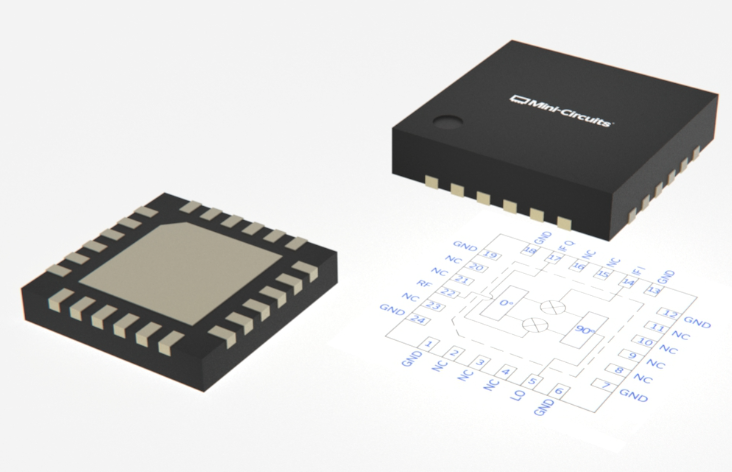

SMIQ-134H+
|
|
Manufacturer Product Number |
Mini Circuits
|
|
Description |
Passive I/Q Mixer MMIC from 10 to 30 GHz
|
| Part Number | SMIQ-134H+ |
| Manufacturer | Mini Circuits |
| Description | Passive I/Q Mixer MMIC from 10 to 30 GHz |
| Type | I/Q Mixer |
| Application | 5G, Electronic Warfare, Radar, SATCOM, Test & Measurement, Wireless Infrastructure |
| RF Frequency | 10 to 30 GHz |
| LO Frequency | 10 to 30 GHz |
| IF Frequency | DC to 7 GHz |
| Image Rejection | 26 to 35 dB |
| Conversion Loss | 7.4 to 9 dB |
| LO Drive – Power | 17 to 19 dBm |
| P1dB | 17 dBm |
| IP3 | 25 dBm |
| LO/RF Isolation | 31 to 41 dB |
| LO/IF Isolation | 31 to 50 dB |
| Supply Current | 25 mA |
| Amplitude Deviation | ±0.1 to ±0.5 dB |
| Sideband Rejection | 21 to 30 dB |
| Impedance | 50 Ohms |
| Package Type | Surface Mount |
| Package | 24-Lead QFN |
| Dimension | 4 x 4 mm |
| Phase Deviation | 1 to 11 Degrees |
| Operating Temperature | -55 to 105 Degree C |
| Storage Temperature | -65 to 150 Degree C |
| RoHS | Yes |
5G & 6G Infrastructure: Ideal for microwave backhaul and wireless point-to-point systems requiring high dynamic range.
Radar & Electronic Warfare: Provides high-linearity frequency conversion for tactical surveillance and jamming protection.
Test & Measurement: Used in wideband vector signal analyzers and synthesizers for precise phase and amplitude balance.
Satellite Communications: Ensures robust signal integrity in Ku-Band and C-Band ground station transceivers.
Authentic Mini-Circuits Sourcing: We guarantee 100% original SMIQ-134H+ components with full factory traceability, protecting your RF architecture from substandard parts.
Shenzhen Hub Advantage: Strategically located in Huaqiangbei, ICCPower offers real-time stock availability and competitive pricing for Mini-Circuits’ advanced mixer portfolio.
Global Logistics Expertise: Reliable DDP/Double Clearance shipping and professional export handling for customers in Mexico, Russia, Iran, and the Middle East.
Technical Verification: Our team assists in cross-referencing LO/RF power requirements and verifying date codes for high-reliability production runs.
