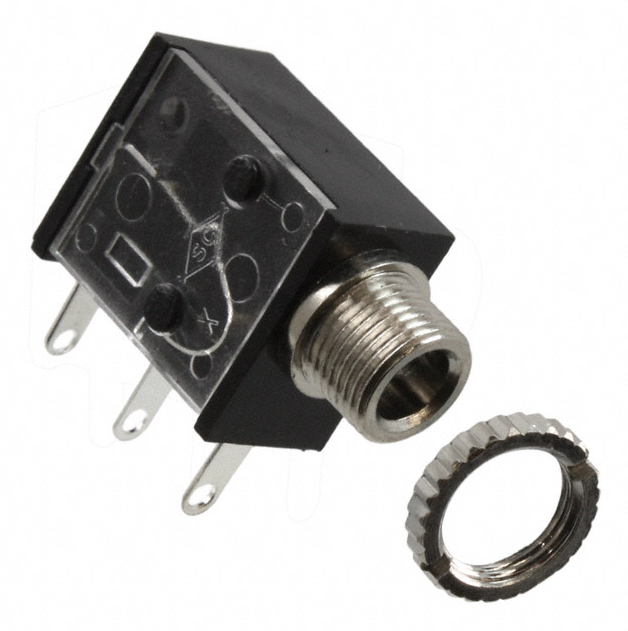

MJ-3502

 Part Number
CP-3502MJ-ND
Manufacturer
Manufacturer Product Number
MJ-3502
Description
CONN JACK MONO 3.5MM R/A
Manufacturer Standard Lead Time
9 Weeks

✓ How we verify every lot

  • Sourcing records — Every lot is bought against a verifiable channel, and the purchase documentation is kept on file for traceability.
  • Label and marking check — Manufacturer label, part number, lot code and date code are checked against the datasheet when the goods arrive.
  • Package inspection — Package integrity, moisture-sensitive packaging and pin condition are inspected before a lot is accepted.
  • Photos before payment — Actual photos of the exact lot — label and parts — are available before you pay, so what you see is what ships.
  • Third-party testing on request — Independent lab testing (visual inspection, X-ray, decapsulation, electrical testing) can be arranged before shipment.

Full verification process →

product detail

Category
Mfr
Series
–
Packaging
Bag
Part Status
Active
Connector Type
Phone Jack
Gender
Female
Signal Lines
Mono
Industry Recognized Mating Diameter
Actual Diameter
0.142″ (3.60mm)
Number of Positions/Contacts
2 Conductors, 3 Contacts
Internal Switch(s)
Single Switch
Mounting Type
Panel Mount, Through Hole, Right Angle
Termination
Solder Eyelet(s)
Shielding
Unshielded
Features
Mounting Hardware, Thread Lock
Insulation Color
–
Operating Temperature
-20°C ~ 85°C
Voltage – Rated
12VDC
Current Rating (Amps)
1 A
Mating Length/Depth
–
Contact Material – Plating
Silver
Body Material
Brass
Body Color
Silver, Black
Includes
2 pcs – 1 Connector, 1 Nut
Housing Material
Polyoxymethylene (POM)
Contact Material
Brass, Phosphor Bronze
Cable Opening
–
Panel Hole Size
0.236″ (5.99mm)
Thread Size
M6
