Manufacturer |
|
|
Manufacturer Product Number |
LTC3805IMSE#TRPBF
|
|
Description |
IC REG CTRLR FLYBACK 10MSOP
|
✓ How we verify every lot
|
Category |
||
|
Manufacturer |
Analog Devices Inc.
|
|
|
Series |
–
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Output Type |
Transistor Driver
|
|
|
Function |
Step-Up/Step-Down
|
|
|
Output Configuration |
Positive, Isolation Capable
|
|
|
Topology |
Flyback
|
|
|
Number of Outputs |
1
|
|
|
Output Phases |
1
|
|
|
Voltage – Supply (Vcc/Vdd) |
3.95V ~ 9.5V
|
|
|
Frequency – Switching |
70kHz ~ 700kHz
|
|
|
Duty Cycle (Max) |
80%
|
|
|
Synchronous Rectifier |
No
|
|
|
Clock Sync |
Yes
|
|
|
Serial Interfaces |
–
|
|
|
Control Features |
Enable, Soft Start
|
|
|
Operating Temperature |
-40°C ~ 125°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

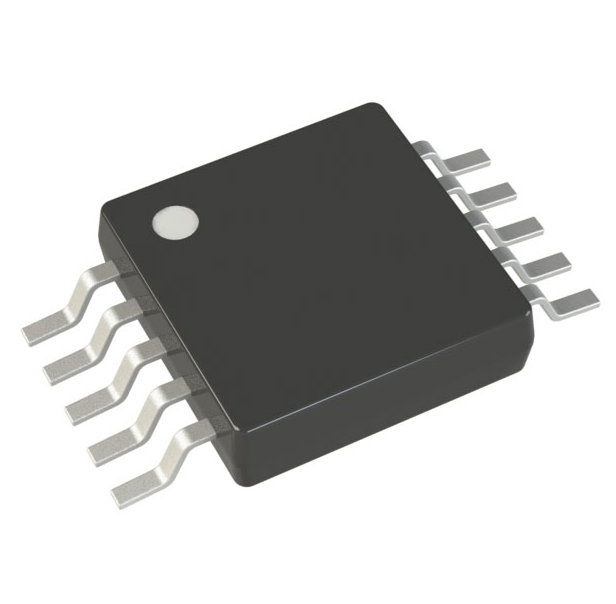

10-TFSOP, 10-MSOP (0.118″, 3.00mm Width) Exposed Pad
|
|
|
Supplier Device Package |
10-MSOP-EP
|
|
|
Base Product Number |
