Manufacturer |
Hirose Electric Co Ltd
|
|
Manufacturer Product Number |

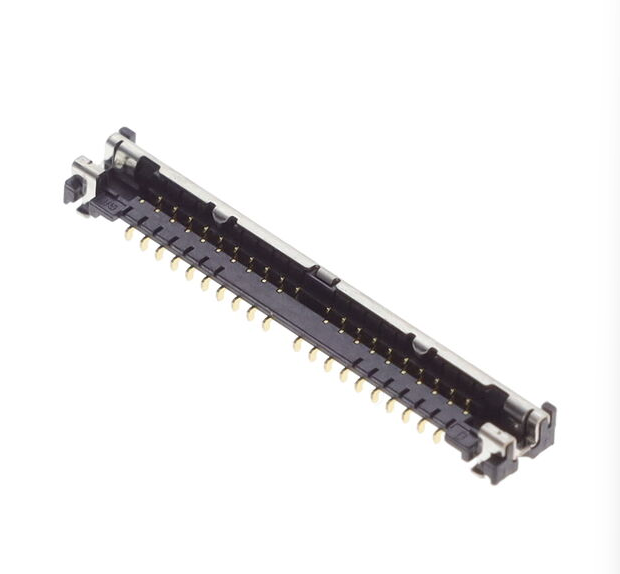

DF56C-40S-0.3V(51)
|
|
Description |
CONN RCPT 40POS 0.012 GOLD SMD
|
|
Type |
Description |
Select All |
|---|---|---|
|
Category |
Connectors, Interconnects
Rectangular Connectors
Headers, Receptacles, Female Sockets
|
|
|
Mfr |
Hirose Electric Co Ltd |
|
|
Series |
DF56 |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Receptacle |
|
|
Contact Type |
Non-Gendered
|
|
|
Style |
Board to Cable/Wire
|
|
|
Number of Positions |
40 |
|
|
Number of Positions Loaded |
All
|
|
|
Pitch – Mating |
0.012″ (0.30mm) |
|
|
Number of Rows |
1
|
|
|
Row Spacing – Mating |
–
|
|
|
Mounting Type |
Surface Mount
|
|
|
Termination |
Solder |
|
|
Fastening Type |
Friction Lock
|
|
|
Contact Finish – Mating |
Gold |
|
|
Contact Finish Thickness – Mating |
3.90µin (0.099µm)
|
|
|
Insulation Color |
Black
|
|
|
Insulation Height |
0.057″ (1.45mm)
|
|
|
Contact Length – Post |
–
|
|
|
Operating Temperature |
-35°C ~ 85°C
|
|
|
Material Flammability Rating |
UL94 V-0
|
|
|
Contact Finish – Post |
Gold
|
|
|
Mated Stacking Heights |
–
|
|
|
Ingress Protection |
–
|
|
|
Features |
Grounding Tab
|
|
|
Current Rating (Amps) |
Varies by Wire Gauge
|
|
|
Voltage Rating |
30VAC
|
|
|
Applications |
–
|
|
|
Insulation Material |
Liquid Crystal Polymer (LCP), Halogen Free
|
|
|
Contact Shape |
–
|
|
|
Contact Material |
Phosphor Bronze
|
|
|
Contact Finish Thickness – Post |
2.00µin (0.051µm)
|
|
|
Base Product Number |
DF56C |
|
