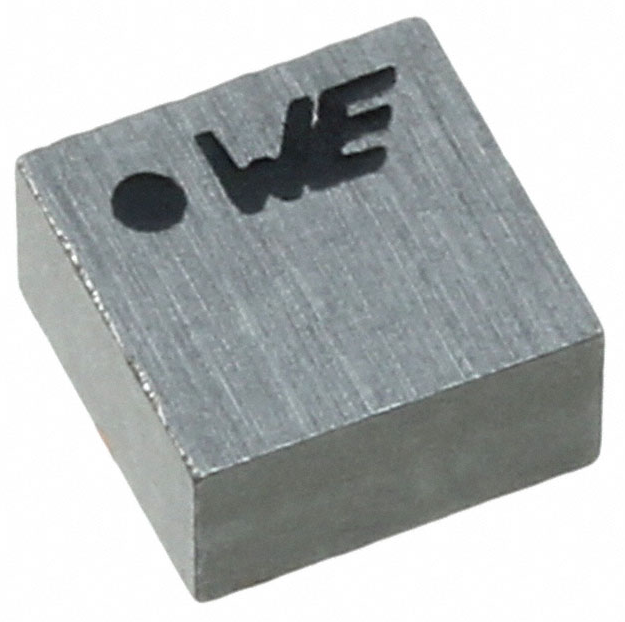

The WE-MAIA 4.7µH fixed inductor from Würth Elektronik is a high-performance shielded SMD inductor designed for automotive and industrial power applications. Built with a drum core wirewound structure and an iron alloy core, this component delivers stable inductance and high current handling for efficient power conversion.
Featuring an inductance of 4.7µH (±20% tolerance) at 100kHz, a maximum current rating of 3.9A, and a saturation current of 6.4A, the WE-MAIA inductor offers low DC resistance (44mOhm max) to minimize power loss. It is qualified to the AEC-Q200 automotive standard, ensuring reliable operation across a wide temperature range of -40°C to 125°C, making it suitable for harsh automotive and industrial environments.
Key Features of WE-MAIA 4.7µH Inductor:
- Inductance: 4.7µH ±20% (tested at 100kHz)
- Current Rating: 3.9A (max), Saturation Current: 6.4A
- DC Resistance: 44mOhm maximum
- Shielding: Shielded design to reduce EMI interference
- Package: 4030 surface mount (4.10mm x 4.10mm)
- Certification: AEC-Q200 qualified for automotive use
- Operating Temperature: -40°C to 125°C
The WE-MAIA series inductor is ideal for DC-DC converters, power supplies, and automotive electronics, providing high efficiency and reliable performance. Available in Tape & Reel (TR), Cut Tape (CT), and Digi-Reel® packaging, this Würth Elektronik SMD inductor supports automated assembly for high-volume production. Its shielded construction minimizes electromagnetic interference, making it a preferred choice for modern electronic designs requiring robust performance.
Product Identifier: Series: WE-MAIA, Inductance: 4.7µH
