1863301

 Part Number
277-7543-ND
Manufacturer
Manufacturer Product Number
1863301
Description

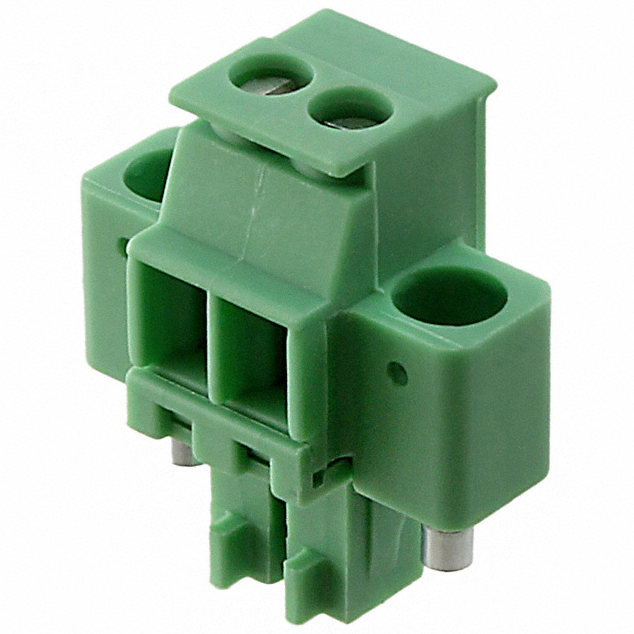

TERM BLOCK PLUG 2POS 3.50MM
Manufacturer Standard Lead Time
4 Weeks

✓ How we verify every lot

  • Sourcing records — Every lot is bought against a verifiable channel, and the purchase documentation is kept on file for traceability.
  • Label and marking check — Manufacturer label, part number, lot code and date code are checked against the datasheet when the goods arrive.
  • Package inspection — Package integrity, moisture-sensitive packaging and pin condition are inspected before a lot is accepted.
  • Photos before payment — Actual photos of the exact lot — label and parts — are available before you pay, so what you see is what ships.
  • Third-party testing on request — Independent lab testing (visual inspection, X-ray, decapsulation, electrical testing) can be arranged before shipment.

Full verification process →

product detail

Category
Manufacturer
Phoenix Contact
Series
Packaging
Bulk
Part Status
Active
Type
Plug, Female Sockets
Number of Positions
2
Positions Per Level
2
Number of Levels
1
Pitch
0.138″ (3.50mm)
Header Orientation
–
Plug Wire Entry
90°
Termination Style
Screw – Rising Cage Clamp
Mounting Type
Free Hanging (In-Line)
Current – IEC
8A
Voltage – IEC
320 V
Current – UL
8 A
Voltage – UL
300 V
Wire Gauge or Range – AWG
14-30 AWG
Wire Gauge or Range – mm²
0.14-1.5mm²
Color
Green
Operating Temperature
–
Contact Mating Finish
Tin
Features
Mating Flange
Material Flammability Rating
UL94 V-0
Ingress Protection
–
Screw Size
M2
Torque – Screw
0.22-0.25 Nm (1.9-2.2 Lb-In)
Wire Strip Length
7mm
Contact Material
–
Housing Material
Polyamide (PA), Nylon
Contact Tail Length
–
Insulation Height
0.752″ (19.10mm)
