Manufacturer |
Molex
|
|
Manufacturer Product Number |
0731000114
|
|
Description |

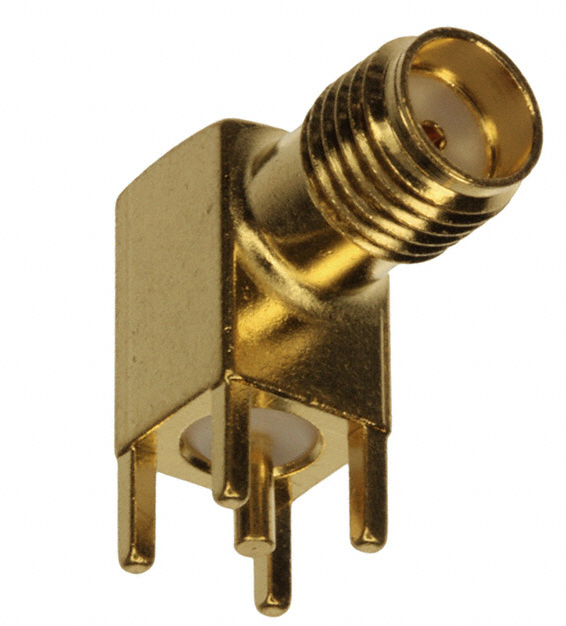

CONN SMA RCPT R/A 50 OHM PCB
|
|
Type |
Description |
Select All |
|---|---|---|
|
Category |
Connectors, Interconnects
Coaxial Connectors (RF)
Coaxial Connector (RF) Assemblies
|
|
|
Mfr |
Molex |
|
|
Series |
73100 |
|
|
Packaging |
Tray
|
|
|
Part Status |
Active
|
|
|
Connector Style |
SMA |
|
|
Connector Type |
Receptacle, Female Socket
|
|
|
Contact Termination |
Solder
|
|
|
Shield Termination |
Solder
|
|
|
Impedance |
50 Ohms
|
|
|
Mounting Type |
Through Hole, Right Angle
|
|
|
Mounting Feature |
–
|
|
|
Cable Group |
–
|
|
|
Fastening Type |
Threaded
|
|
|
Frequency – Max |
18 GHz
|
|
|
Number of Ports |
1
|
|
|
Features |
–
|
|
|
Housing Color |
Gold
|
|
|
Ingress Protection |
–
|
|
|
Center Contact Material |
Beryllium Copper
|
|
|
Includes |
–
|
|
|
Body Material |
Brass
|
|
|
Body Finish |
Gold
|
|
|
Center Contact Plating |
Gold
|
|
|
Dielectric Material |
Polytetrafluoroethylene (PTFE)
|
|
|
Operating Temperature |
-65°C ~ 165°C
|
|
|
Voltage Rating |
500 V
|
|
|
Mating Cycles |
500
|
|
|
Insertion Loss |
–
|
|
|
Base Product Number |
073100 |
