Manufacturer |
Diodes Incorporated
|
|
Manufacturer Product Number |

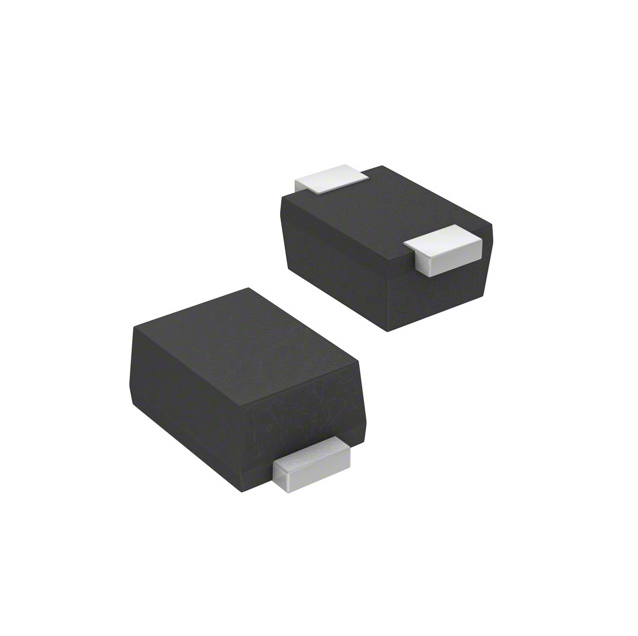

D5V0L1B2S9-7
|
|
Description |
TVS DIODE 5VWM 14VC SOD923
|
|
Category 类别 |
Circuit Protection 电路保护
Transient Voltage Suppressors (TVS)瞬态电压抑制器 (TVS)
TVS Diodes TVS二极管
|
|
|
Mfr 制造商 |
Diodes Incorporated 二极管公司 |
|
|
Series 系列 |
–
|
|
|
Packaging 包装 |
Tape & Reel (TR) 卷带式 (TR)
Cut Tape (CT) 切带 (CT)
Digi-Reel® 数码卷轴®
|
|
|
Part Status 零件状态 |
Active 活跃
|
|
|
Type 类型 |
Zener 齐纳
|
|
|
Bidirectional Channels 双向通道 |
1
|
|
|
Voltage – Reverse Standoff (Typ)电压 – 反向隔离（典型值） |
5V (Max) 5V（最大）
|
|
|
Voltage – Breakdown (Min) 电压 – 击穿（最小值） |
6V 6V
|
|
|
Voltage – Clamping (Max) @ Ipp电压 – 钳位（最大）@Ipp |
14V 14V
|
|
|
Current – Peak Pulse (10/1000µs)电流 – 峰值脉冲 (10/1000µs) |
6A (8/20µs) 6A（8/20μs）
|
|
|
Power – Peak Pulse 功率 – 峰值脉冲 |
84W 84W
|
|
|
Power Line Protection 电源线保护 |
No 否
|
|
|
Applications 应用领域 |
General Purpose 通用型
|
|
|
Capacitance @ Frequency 电容@频率 |
15pF @ 1MHz 15pF@1MHz
|
|
|
Operating Temperature 工作温度 |
-65°C ~ 150°C (TJ) -65°C ~ 150°C（太焦）
|
|
|
Mounting Type 安装类型 |
Surface Mount 表面贴装
|
|
|
Package / Case 包装/箱 |
SOD-923 SOD-923
|
|
|
Supplier Device Package 供应商设备包 |
SOD-923 SOD-923 |
|
|
Substitutes 替补 |
ESD5V0D9B-TP ESDLC5V0D9B-TP ESD5V0D9B-TP ESDLC5V0D9B-TP |
