Manufacturer |
Bourns Inc.
|
|
Manufacturer Product Number |
CDSOT23-SM712
|
|
Description |
TVS DIODE 12VWM 7VWM SOT233
|
|
Type |
Description |
Select All |
|---|---|---|
|
Category |
Circuit Protection
Transient Voltage Suppressors (TVS)
TVS Diodes
|
|
|
Mfr |
Bourns Inc. |
|
|
Series |
–
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Zener
|
|
|
Bidirectional Channels |
2
|
|
|
Voltage – Reverse Standoff (Typ) |
12V (Max), 7V (Max)
|
|
|
Voltage – Breakdown (Min) |
13.3V, 7.5V
|
|
|
Voltage – Clamping (Max) @ Ipp |
26V, 14V
|
|
|
Current – Peak Pulse (10/1000µs) |
17A (8/20µs)
|
|
|
Power – Peak Pulse |
400W
|
|
|
Power Line Protection |
No
|
|
|
Applications |
RS-485
|
|
|
Capacitance @ Frequency |
75pF @ 1MHz
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|

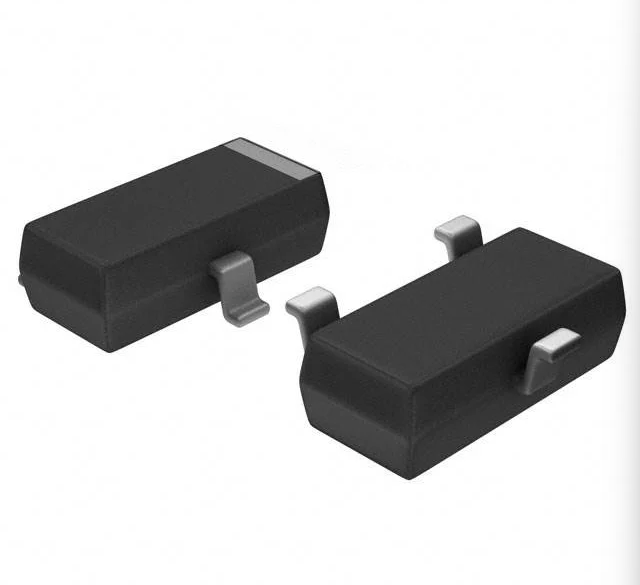

Package / Case |
TO-236-3, SC-59, SOT-23-3
|
|
|
Supplier Device Package |
SOT-23-3 |
|
|
Substitutes |
CDSOT23-SM712-Q PEC33712C2A_R1_00001 PESD12VL2BT,215 SM712-02HTG |
