1553B Bus Simulation Analyzer

Simulation Fault Injection Series — 1553B Bus Box The simulator is used to implement 1553B module simulation, 1553B data secondary encoding and decoding, and fault injection functions. It is designed for custom secondary data encoding and decoding based on 1553B data communication, widely used in the secondary development of 1553B data and to assist R&D personnel in troubleshooting during the early stages of product development, thereby improving the speed and reliability of product development.

product detail

Parameter Category
Detailed Specifications
Bus Rate
Supports 1/4M bus rate
1553B Controller & Simulation Modes (Built-in Multifunctional)
Capable of simulating BC, RT, and BM modes, with the following details:- BC simulation: Supports all 1553B messages (BC-RT, RT-BC, RT-RT, mode commands, broadcasting); users can customize data word content and set message time intervals.- RT simulation: Can simultaneously simulate 0-31 RTs; supports custom data word content and illegal words; RTs can be set as sending/receiving RTs, supporting data wrapping, broadcast commands, mode commands, and all types of 1553B messages.- BM simulation: Real-time monitors all bus messages (displays message types, bus word types); real-time statistics of total messages (correct/incorrect, separate counts for CS and NR); real-time display of bus load rate; supports real-time saving of bus data, with data playback, searching, and error message localization/analysis features.- 1553B data secondary encoding and decoding: Enables implementation monitoring of application layer data.
Design & Portability

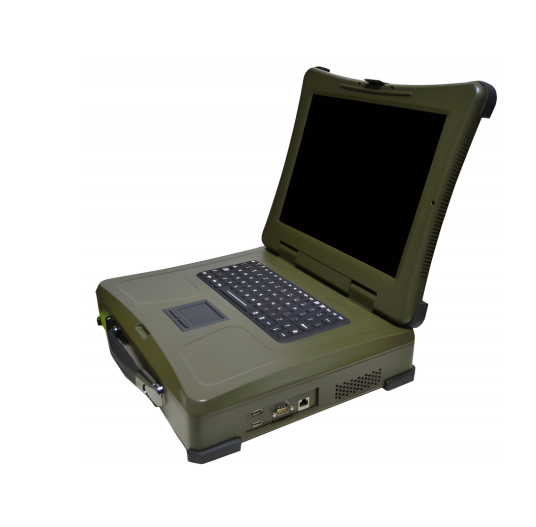

Notebook-style design, built-in battery, convenient for field use
