Manufacturer |
AMD
|
|
Manufacturer Product Number |
XCZU4EG-2FBVB900E
|
|
Description |
IC SOC CORTEX-A53 900FCBGA
|
|
Category
Integrated Circuits (ICs)
Embedded
System On Chip (SoC)
|
Connectivity
CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
|
|
Manufacturer
AMD
|
Speed
533MHz, 600MHz, 1.3GHz
|
|
Series
Zynq® UltraScale+™ MPSOC EG
|
Primary Attributes
Zynq®UltraScale+™ FPGA, 192K+ Logic Cells
|
|
Packaging
Tray
|
Operating Temperature
0°C ~ 100°C (TJ)
|
|
Part Status
Active
|
Package / Case
900-BBGA, FCBGA
|
|
Architecture
MCU, FPGA
|
Supplier Device Package
900-FCBGA (31×31)
|
|
Core Processor
Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™, ARM Mali™-400 MP2
|
Number of I/O
204
|
|
RAM Size
256KB
|
Base Product Number
XCZU4
|
|
Peripherals
DMA, WDT
|
Q1: What does the “E” and “-2” designation signify in XCZU4EG-2FBVB900E? A: The “-2” represents the high-performance speed grade tier, offering faster logic operation and improved timing parameters over standard-speed variants. The “E” suffix stands for Extended Commercial grade, certifying stable operation within a 0°C to +100°C thermal envelope.

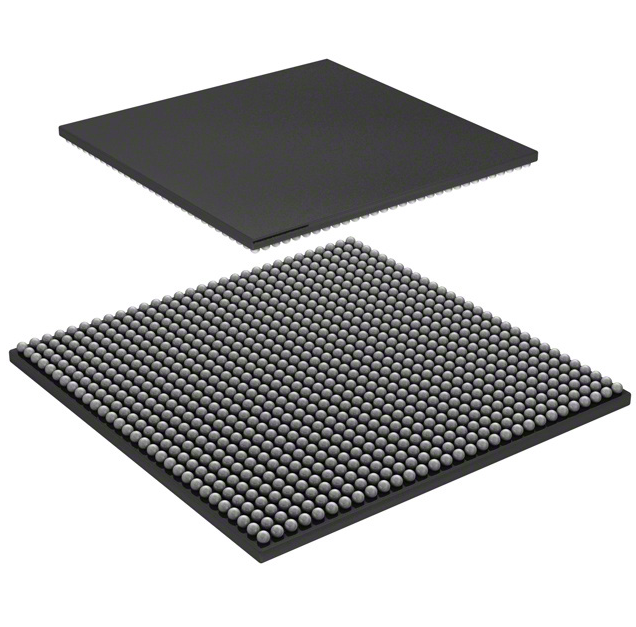

Q2: What is the benefit of choosing the FBVB900 package for the XCZU4EG? A: The FBVB900 is a 900-ball flip-chip BGA package measuring 31 mm x 31 mm, which provides an increased matrix count for routing complex board interfaces and managing high-speed I/O requirements compared to smaller pin-count footprints.
