Part Number |
SAM9696-ND
|
|
Manufacturer |
|
|
Manufacturer Product Number |
MCX-J-P-H-ST-MT1
|
|
Description |

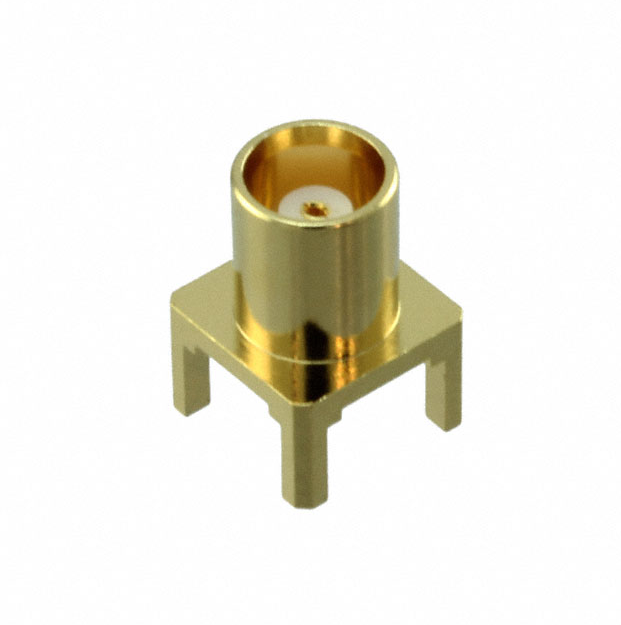

CONN MCX JACK STR 50 OHM SMT
|
|
Manufacturer Standard Lead Time |
4 Weeks |
|
Category |
||
|
Mfr |
|
|
|
Series |
|
|
|
Packaging |
Bulk
|
|
|
Part Status |
Active
|
|
|
Connector Style |
|
|
|
Connector Type |
Jack, Female Socket
|
|
|
Contact Termination |
Solder
|
|
|
Shield Termination |
Solder
|
|
|
Impedance |
50 Ohms
|
|
|
Mounting Type |
Surface Mount, Through Hole
|
|
|
Mounting Feature |
–
|
|
|
Cable Group |
–
|
|
|
Fastening Type |
Snap-On
|
|
|
Frequency – Max |
6 GHz
|
|
|
Number of Ports |
1
|
|
|
Features |
–
|
|
|
Housing Color |
Gold
|
|
|
Ingress Protection |
–
|
|
|
Center Contact Material |
Copper Alloy
|
|
|
Includes |
–
|
|
|
Body Material |
Brass
|
|
|
Body Finish |
Gold
|
|
|
Center Contact Plating |
Gold
|
|
|
Dielectric Material |
Polytetrafluoroethylene (PTFE)
|
|
|
Operating Temperature |
-65°C ~ 125°C
|
|
|
Mating Cycles |
–
|
|
|
Insertion Loss |
–
|
|
|
Base Product Number |
