Part Number |
AD7305BRUZ-REEL7TR-ND – Tape & Reel (TR)
AD7305BRUZ-REEL7CT-ND – Cut Tape (CT)
AD7305BRUZ-REEL7DKR-ND – Digi-Reel®
|
|
Manufacturer |
|
|
Manufacturer Product Number |
AD7305BRUZ-REEL7
|
|
Description |

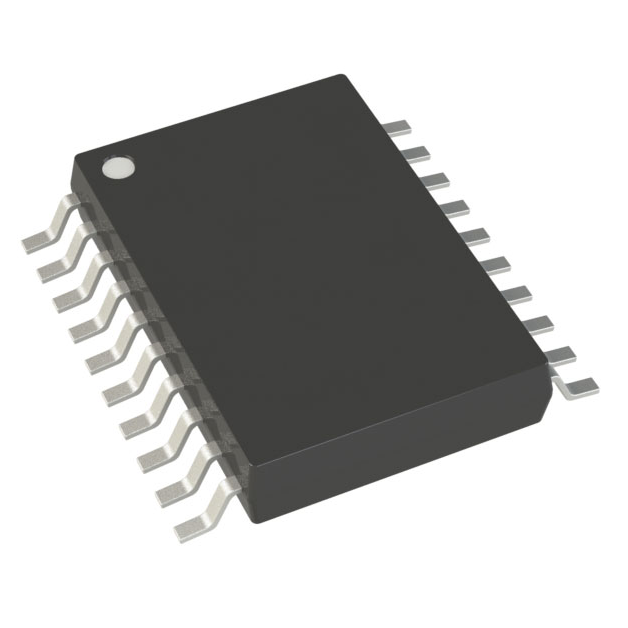

IC DAC 8BIT V-OUT 20TSSOP
|
|
Manufacturer Standard Lead Time |
10 Weeks |
| Category | Integrated Circuits (ICs) Data Acquisition Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Part Status | Active |
| Number of Bits | 8 |
| Number of D/A Converters | 4 |
| Settling Time | 2µs |
| Output Type | Voltage – Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage – Supply, Analog | 2.7V ~ 5.5V, ±5V |
| Voltage – Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 20-TSSOP (0.173″, 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | AD7305 |
