Part Number |
505-LT3045EMSE#TRPBFTR-ND – Tape & Reel (TR)
505-LT3045EMSE#TRPBFCT-ND – Cut Tape (CT)
505-LT3045EMSE#TRPBFDKR-ND – Digi-Reel®
|
|
Manufacturer |
|
|
Manufacturer Product Number |

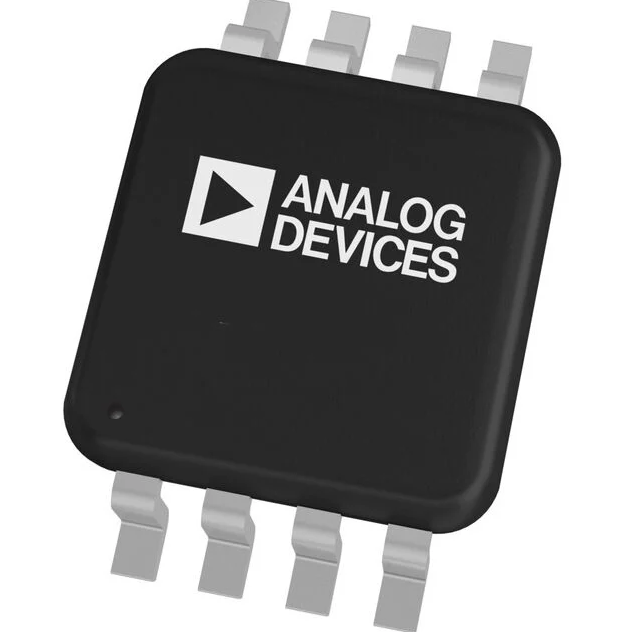

LT3045EMSE#TRPBF
|
|
Description |
IC REG LIN POS ADJ 500MA 12MSOP
|
|
Manufacturer Standard Lead Time |
11 Weeks |
|
Category |
||
|
Mfr |
|
|
|
Series |
–
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Output Configuration |
|
|
|
Output Type |
|
|
|
Number of Regulators |
1
|
|
|
Voltage – Input (Max) |
20V
|
|
|
Voltage – Output (Min/Fixed) |
0V
|
|
|
Voltage – Output (Max) |
|
|
|
Voltage Dropout (Max) |
0.45V @ 500mA
|
|
|
Current – Output |
|
|
|
Current – Quiescent (Iq) |
20 µA
|
|
|
Current – Supply (Max) |
25 mA
|
|
|
PSRR |
117dB ~ 53dB (120Hz ~ 10MHz)
|
|
|
Control Features |
Enable, Power Good, Soft Start
|
|
|
Protection Features |
Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
|
|
|
Operating Temperature |
-40°C ~ 125°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
12-TSSOP (0.118″, 3.00mm Width) Exposed Pad
|
|
|
Supplier Device Package |
12-MSOP-EP
|
|
|
Base Product Number |
