Part Number |

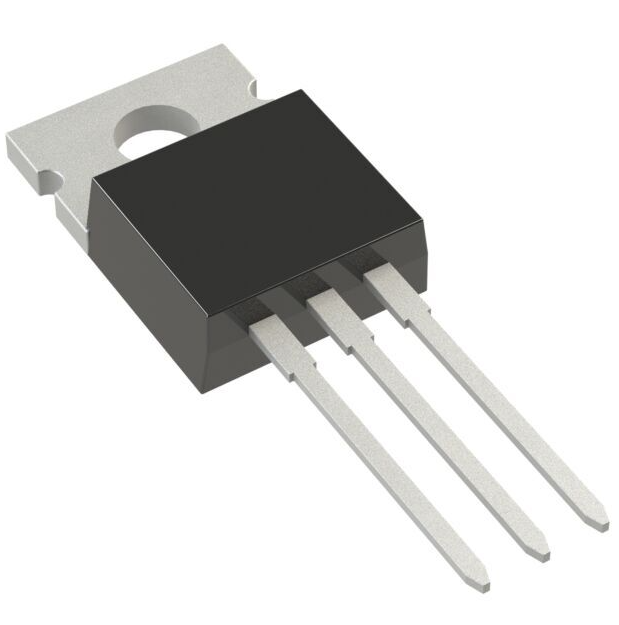

IRF3205PBF-ND
|
|
Manufacturer |
|
|
Manufacturer Product Number |
IRF3205PBF
|
|
Description |
MOSFET N-CH 55V 110A TO220AB
|
|
Manufacturer Standard Lead Time |
35 Weeks |
|
Category |
||
|
Mfr |
|
|
|
Series |
|
|
|
Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
FET Type |
|
|
|
Technology |
|
|
|
Drain to Source Voltage (Vdss) |
55 V
|
|
|
Current – Continuous Drain (Id) @ 25°C |
|
|
|
Drive Voltage (Max Rds On, Min Rds On) |
10V
|
|
|
Rds On (Max) @ Id, Vgs |
8mOhm @ 62A, 10V
|
|
|
Vgs(th) (Max) @ Id |
4V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
146 nC @ 10 V
|
|
|
Vgs (Max) |
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
3247 pF @ 25 V
|
|
|
FET Feature |
–
|
|
|
Power Dissipation (Max) |
200W (Tc)
|
|
|
Operating Temperature |
-55°C ~ 175°C (TJ)
|
|
|
Grade |
–
|
|
|
Qualification |
–
|
|
|
Mounting Type |
Through Hole
|
|
|
Supplier Device Package |
TO-220AB
|
|
|
Package / Case |
|
|
|
Base Product Number |
