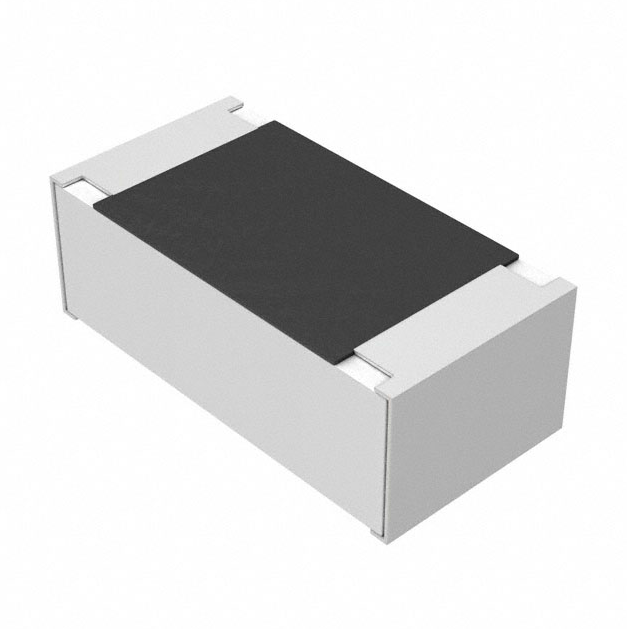

The ERJ-P06J7R5V is a premium surface mount resistor manufactured by Panasonic Electronic Components, belonging to the ERJ-U02 series. Designed for precision and durability, this component uses thick film technology to deliver stable electrical performance across a wide range of operating conditions. With a resistance value of 7.5 ohms and a tolerance of ±1%, it ensures accurate signal division, voltage reduction, and current limiting in compact electronic circuits.
Rated at 1/10W (0.1W) maximum power dissipation, the ERJ-P06J7R5V is perfectly suited for low-power applications where space is limited. Its 0402 (1005 metric) package size minimizes board space usage, making it ideal for high-density PCB layouts found in modern consumer electronics, automotive subsystems, and industrial control equipment.
Key Features of ERJ-P06J7R5V:
- Resistance: 7.5 Ohms with ±1% tolerance
- Power Rating: 1/10W (0.1W)
- Package: 0402 (1005 metric) surface mount
- Technology: Thick film construction
- Qualification: AEC-Q200 automotive grade, anti-sulfur
- Temperature Coefficient: -100/+600ppm/°C
- Operating Temperature Range: -55°C to 155°C
Compliant with the AEC-Q200 standard, the ERJ-P06J7R5V is qualified for use in harsh automotive environments, providing reliable operation even in high-temperature and high-humidity conditions. Its anti-sulfur feature protects against corrosion in sulfur-rich environments, extending component lifespan. Available in Tape and Reel (TR), Cut Tape (CT), and Digi-Reel® packaging, this Panasonic SMD resistor supports both high-volume automated assembly and small-batch prototyping needs. It is fully RoHS compliant, offering an environmentally friendly solution for modern design requirements.
