Manufacturer |

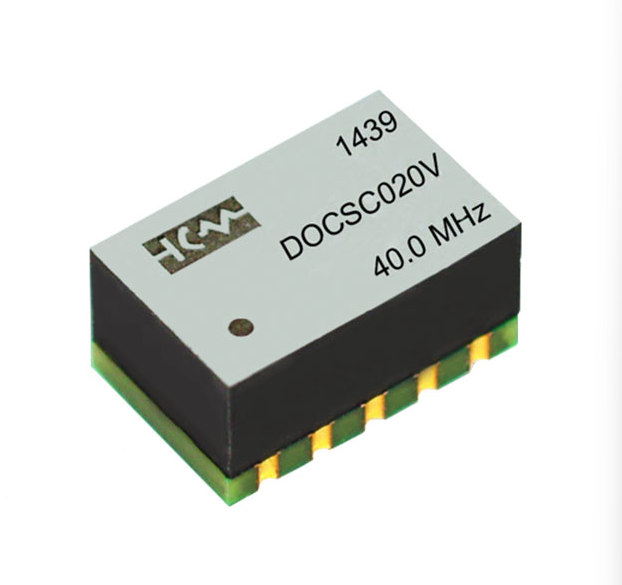

Connor Winfield
|
|
Manufacturer Product Number |
DOCSC022F-040.0M
|
|
Description |
XTAL OSC OCXO 40.0000MHZ LVCMOS
|
|
Type |
Description |
Select All |
|---|---|---|
|
Category |
Crystals, Oscillators, Resonators
Oscillators
|
|
|
Mfr |
Connor Winfield |
|
|
Series |
DOCSC |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Base Resonator |
Crystal |
|
|
Type |
OCXO |
|
|
Frequency |
40 MHz |
|
|
Function |
–
|
|
|
Output |
LVCMOS
|
|
|
Voltage – Supply |
3.3V
|
|
|
Frequency Stability |
±20ppb
|
|
|
Absolute Pull Range (APR) |
–
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Current – Supply (Max) |
–
|
|
|
Ratings |
–
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
6-SMD, No Lead
|
|
|
Size / Dimension |
0.555″ L x 0.358″ W (14.10mm x 9.10mm)
|
|
|
Height – Seated (Max) |
0.335″ (8.51mm)
|
|
|
Current – Supply (Disable) (Max) |
–
|
