Manufacturer |
Analog Devices Inc.
|
|
Manufacturer Product Number |

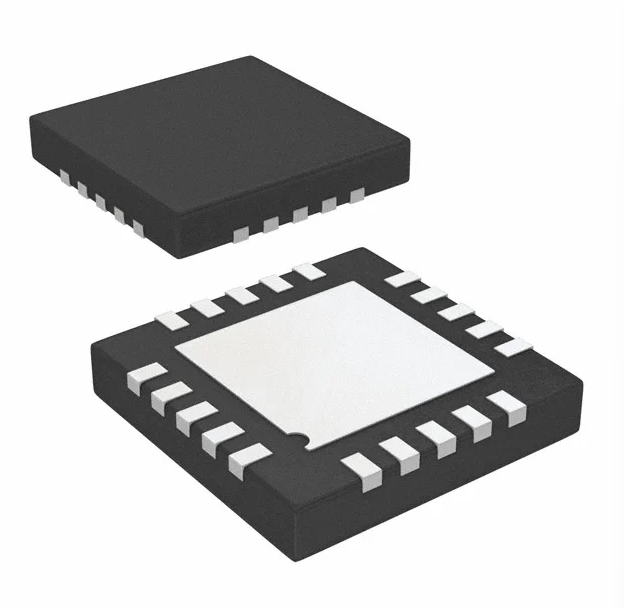

AD7689BCPZ
|
|
Description |
IC ADC 16BIT SAR 20LFCSP
|
|
Type |
Description |
Select All |
|---|---|---|
|
Category |
Integrated Circuits (ICs)
Data Acquisition
Analog to Digital Converters (ADC)
|
|
|
Manufacturer |
Analog Devices Inc.
|
|
|
Series |
PulSAR® |
|
|
Packaging |
Tray
|
|
|
Part Status |
Active
|
|
|
Number of Bits |
16
|
|
|
Sampling Rate (Per Second) |
250k
|
|
|
Number of Inputs |
8
|
|
|
Input Type |
Differential, Pseudo-Differential, Single Ended
|
|
|
Data Interface |
SPI, DSP
|
|
|
Configuration |
MUX-S/H-ADC
|
|
|
Ratio – S/H:ADC |
1:1
|
|
|
Number of A/D Converters |
1
|
|
|
Architecture |
SAR
|
|
|
Reference Type |
External, Internal
|
|
|
Voltage – Supply, Analog |
2.3V ~ 5.5V
|
|
|
Voltage – Supply, Digital |
2.3V ~ 5.5V
|
|
|
Features |
Temperature Sensor
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Package / Case |
20-WFQFN Exposed Pad, CSP
|
|
|
Supplier Device Package |
20-LFCSP (4×4)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Base Product Number |
AD7689 |
|
