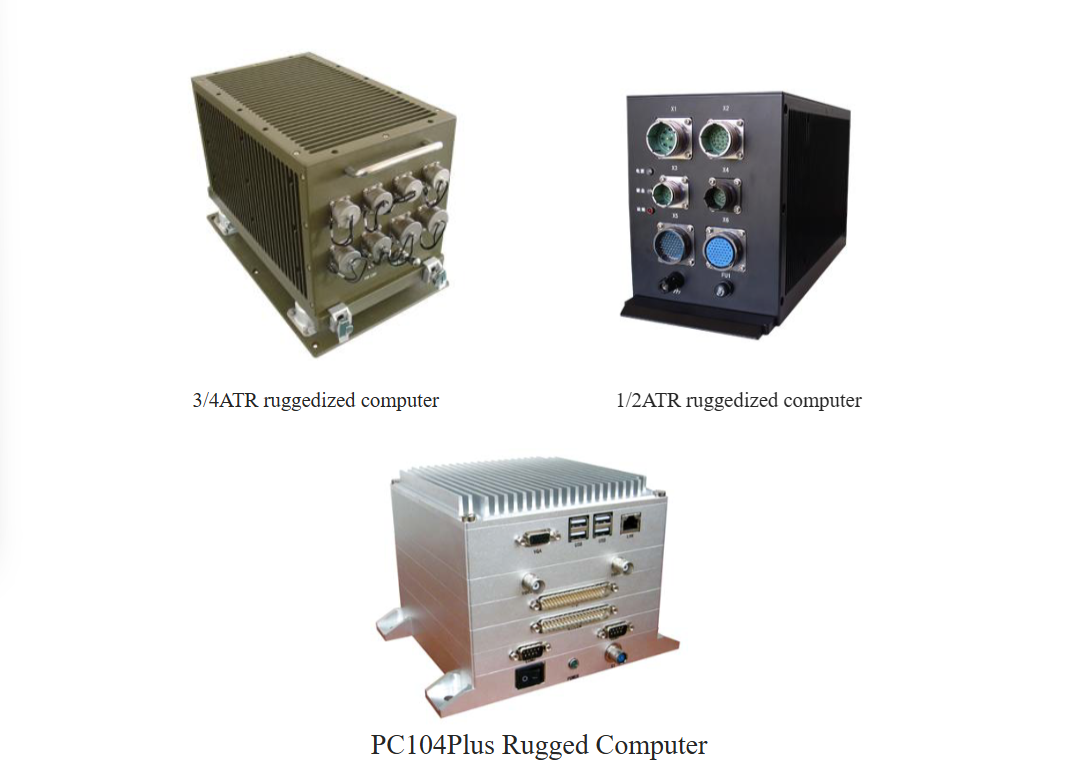

ATR Rugged Chassis

Parameter Category	Details
Product Positioning	Specifically designed for applications in harsh environments
Design Standard	Based on military ATR standards
Customization Feature	Fully customized according to customer needs
Customization Scope	1. Backplane design 2. Power supply design 3. Chassis design 4. Electromagnetic compatibility analysis 5. Thermal distribution calculation and heat dissipation design 6. Application hardware design (e.g., IO expansion boards)

product detail

Parameter Category	Details
Vibration Resistance	Ruggedized aluminum chassis with internal module locking mounting
Bus Structure	Compact PCI bus structure (supports PXI, VME, PC104 or other bus structures)
Internal Backplane Configuration	1. Custom 6U 8-slot CPCI/VME baseplane 2. Custom 4-slot CPCI backplane (1/2ATR) inside the system
Power Supply	2-slot 6U CPCI ruggedized power supply (3/4ATR)
Cooling Method	Thermal conductivity (thermal conduction) heat dissipation method
Special Design	Unique electromagnetic compatibility and environmental protection design
Connection & Outlet	Fast and reliable connection, flexible and convenient outlet method
Environmental Compliance	Complies with GJB relevant standards and equipment application related standards
