Part Number |
ADG4612BRUZ-REEL7TR-ND – Tape & Reel (TR)
ADG4612BRUZ-REEL7CT-ND – Cut Tape (CT)
ADG4612BRUZ-REEL7DKR-ND – Digi-Reel®
|
|
Manufacturer |
|
|
Manufacturer Product Number |
ADG4612BRUZ-REEL7
|
|
Description |
IC SW SPST-NOX4 5.1OHM 16TSSOP
|
|
Manufacturer Standard Lead Time |
10 Weeks |
| Category | Integrated Circuits (ICs) Interface Analog Switches, Multiplexers, Demultiplexers |
| Manufacturer | Analog Devices Inc. |
| Series | – |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Part Status | Active |
| Switch Circuit | SPST – NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 5.1Ohm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm |
| Voltage – Supply, Single (V+) | 3V ~ 12V |
| Voltage – Supply, Dual (V±) | ±3V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 73ns, 91ns |
| -3db Bandwidth | 250MHz |
| Charge Injection | 292pC |
| Channel Capacitance (CS(off), CD(off)) | 11.5pF, 11.5pF |
| Current – Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -74dB @ 1MHz |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |

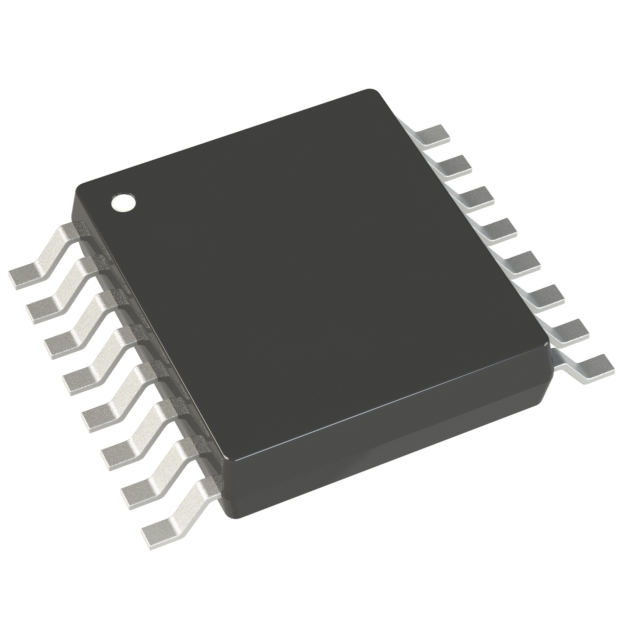

| Package / Case | 16-TSSOP (0.173″, 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | ADG4612 |
