Part Number |
516-1603-5-ND
|
|
Manufacturer |
|
|
Manufacturer Product Number |
ACSL-6400-00TE
|
|
Description |

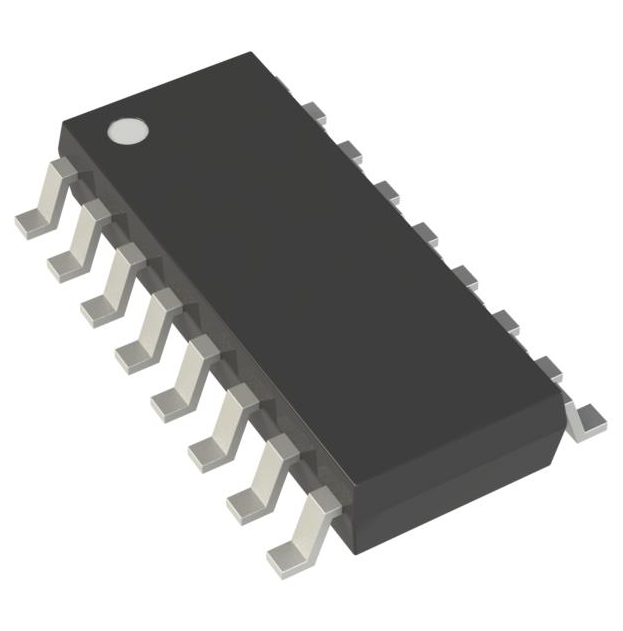

OPTOIS 2.5KV 4CH OPN COLL 16SOIC
|
|
Manufacturer Standard Lead Time |
17 Weeks |
|
Category |
||
|
Manufacturer |
Broadcom Limited
|
|
|
Series |
–
|
|
|
Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
Number of Channels |
4
|
|
|
Inputs – Side 1/Side 2 |
4/0
|
|
|
Voltage – Isolation |
2500Vrms
|
|
|
Common Mode Transient Immunity (Min) |
10kV/µs
|
|
|
Input Type |
DC
|
|
|
Output Type |
Open Collector, Schottky Clamped
|
|
|
Current – Output / Channel |
50 mA
|
|
|
Data Rate |
15MBd
|
|
|
Propagation Delay tpLH / tpHL (Max) |
100ns, 100ns
|
|
|
Rise / Fall Time (Typ) |
30ns, 12ns
|
|
|
Voltage – Forward (Vf) (Typ) |
1.52V
|
|
|
Current – DC Forward (If) (Max) |
15mA
|
|
|
Voltage – Supply |
3V ~ 5.5V
|
|
|
Operating Temperature |
-40°C ~ 100°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
16-SOIC (0.154″, 3.90mm Width)
|
|
|
Supplier Device Package |
16-SOIC
|
|
|
Base Product Number |
|
