Part Number |
NOR1211-ND
|
|
Manufacturer |
|
|
Manufacturer Product Number |
684S13W3103L461
|
|
Description |

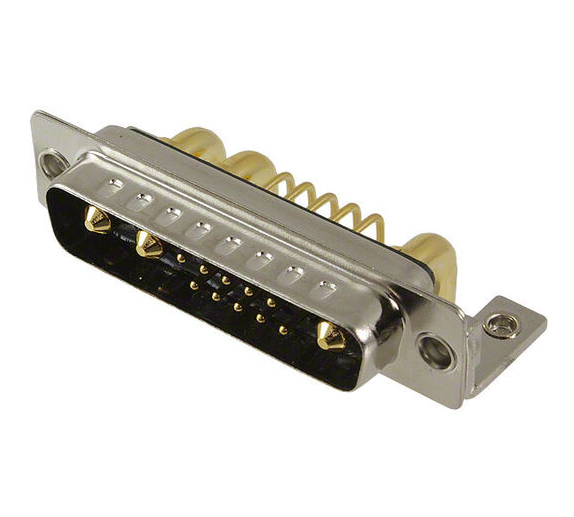

CONN D-SUB PLUG 13POS R/A SOLDER
|
|
Manufacturer Standard Lead Time |
19 Weeks |
| Category | Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies |
|---|---|
| Mfr | NorComp Inc. |
| Series | Power-D, Seal-D 684S |
| Packaging | Tray |
| Part Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Number of Positions | 13 (10 + 3 Power) |
| Number of Rows | 2 |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Shell Size, Connector Layout | 3 (DB, B) – 13C3, 13W3 |
| Contact Type | Signal and Power |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Ingress Protection | IP67 – Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 5A, 40A |
| Backset Spacing | 0.401″ (10.20mm) |
| Features | Board Lock, Grounding Indents, Mounting Brackets |
| Voltage Rating | – |
| Color | Black |
| Contact Form | Machined |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Wire Gauge | – |
| Contact Material | Copper Alloy |
| Operating Temperature | -55°C ~ 125°C |
| Base Product Number | 684S13W |
