Part Number |
277-16659-ND
|
|
Manufacturer |
|
|
Manufacturer Product Number |
1912074
|
|
Description |

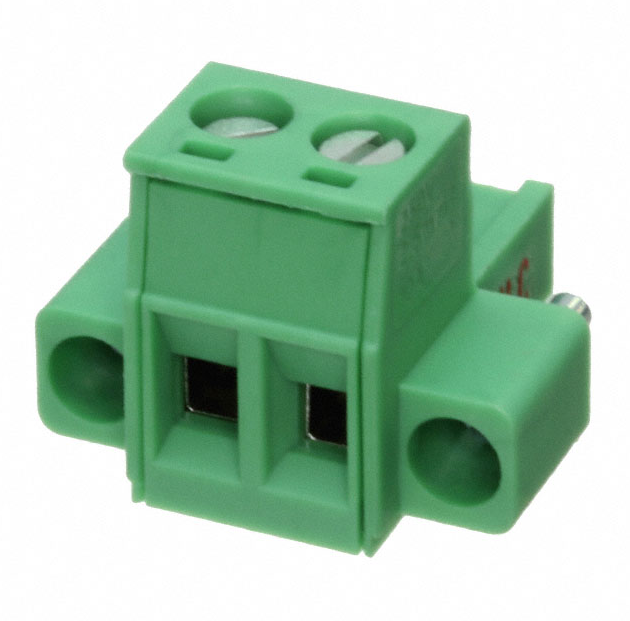

TERM BLOCK PLUG 2POS 5MM
|
|
Manufacturer Standard Lead Time |
4 Weeks |
|
Category |
||
|
Manufacturer |
Phoenix Contact
|
|
|
Series |
|
|
|
Packaging |
Bulk
|
|
|
Part Status |
Active
|
|
|
Type |
Plug, Female Sockets
|
|
|
Number of Positions |
2
|
|
|
Positions Per Level |
2
|
|
|
Number of Levels |
1
|
|
|
Pitch |
0.197″ (5.00mm)
|
|
|
Header Orientation |
–
|
|
|
Plug Wire Entry |
180°
|
|
|
Termination Style |
Screw – Rising Cage Clamp
|
|
|
Mounting Type |
Free Hanging (In-Line)
|
|
|
Current – IEC |
16A
|
|
|
Voltage – IEC |
630 V
|
|
|
Current – UL |
16 A
|
|
|
Voltage – UL |
300 V
|
|
|
Wire Gauge or Range – AWG |
12-30 AWG
|
|
|
Wire Gauge or Range – mm² |
0.2-2.5mm²
|
|
|
Color |
Green
|
|
|
Operating Temperature |
–
|
|
|
Contact Mating Finish |
Tin
|
|
|
Features |
Mating Flange
|
|
|
Material Flammability Rating |
UL94 V-0
|
|
|
Ingress Protection |
–
|
|
|
Screw Size |
M3
|
|
|
Torque – Screw |
0.5-0.6 Nm (4.4-5.3 Lb-In)
|
|
|
Wire Strip Length |
7mm
|
|
|
Contact Material |
–
|
|
|
Housing Material |
Polyamide (PA), Nylon
|
|
|
Contact Tail Length |
–
|
|
|
Insulation Height |
0.591″ (15.00mm)
|
