| Category | Inductors, Coils, Chokes Fixed Inductors |
| Mfr | Coilcraft |
| Series | 0805LS |
| Packaging | Strip |
| Part Status | Active |
| Type | Wirewound |
| Material – Core | Ceramic, Ferrite |
| Inductance | 78 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 2 A |
| Current – Saturation (Isat) | – |
| Shielding | Unshielded |
| DC Resistance (DCR) | 42 mOhm Max |
| Q @ Freq | 19 @ 7.9 MHz |
| Frequency – Self Resonant | 1.44 GHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency – Test | 7.9 MHz |
| Features | – |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |

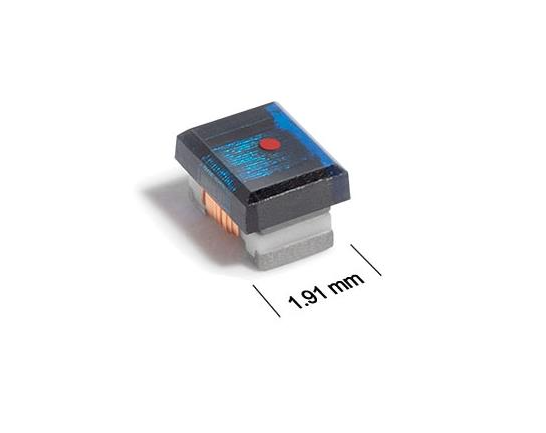

| Size / Dimension | 0.090″ L x 0.075″ W (2.29 mm x 1.91 mm) Height – Seated (Max): 0.063″ (1.60 mm) |
